Product Details

APPLICATION AREA:

Plastic thermoforming machine adopts servo  motor for sheet feeding and stretching, PLC for programme, touch screen for  operation, stable, low noise, high efficiency.


SAMPLE:



      cup              bowl,  lid        tray         box,container

TECHNICAL  PARAMETER

Model

TQC-750

TQC-650B

Max. Forming Area

740*480mm

650*320 mm

Max. Forming Depth

125mm

125mm

Sheet Thickness

0.3-1.8mm

0.3-1.8mm

Sheet Width

750mm

650mm

Forming Speed

26 times/min

30 times/min

Air Pressure

0.6-0.8mpa

0.6-0.8mpa

Air Consumption

3.0m³/min

2.0m³/min

Water Consumption

0.7m³/h

0.5m³/h

Rated Power

140kw

98kw

 Power Supply

                  AC 380V,50Hz,    Three-phase, Four-wire

Dimension

L8200*W2200*H3200mm

L6000*W2000*H3100mm

Weight

About 6.5T

About 5 T



SPECIFICS

1. Mould is fixed by four pillars. --more stable,    precision, lower noise, high speed.

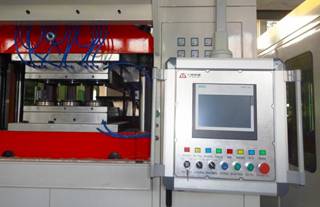

2.Touch screen and PLC use Siemens, Germany technology .

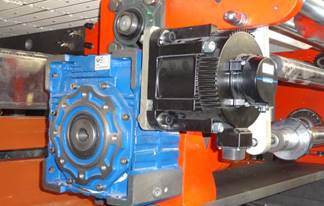

3.Sheet feeding use servo motor.


4.Mould streching use servo motor.




5.Automatical Mechanism movement lubricant automatically at certain times.

6.Auomatic sheet feeder with square steel structure, stable,energy-saving and high efficiency.



7. Hydraulic driven system, enough movement speed and strong punching power.

8.Material holder combines with the machine
     It can save workshop space, avoid electrostatic precipitation, easy to control.



9. This part,    driven by hydraulic system, is whole together part, more reliable and steady.

10 . Heating tile adopts vacuum insulation    cotton, can save more energy.



11.Movable electric furnace.

12.Sharp chain uses 65#Mn,higher strength and better    elasticity than 45# steel




Company  Brief Introduction
 Rui'an Litai Machinery CO.,LTD is founded in  2001. For more than 16 years, we focus on researching, developing,  manufacturing and marketing on thermoforming machine, plastic cup production  line, BOPS plastic thermoforming machine, mutil-layer PP/PS/PET sheet extruder,  mould, etc. There are more than 72 countries and regions cooperating with us,  such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil, Chile,  Bolivia, Saudi Arabia, Peru, etc.
