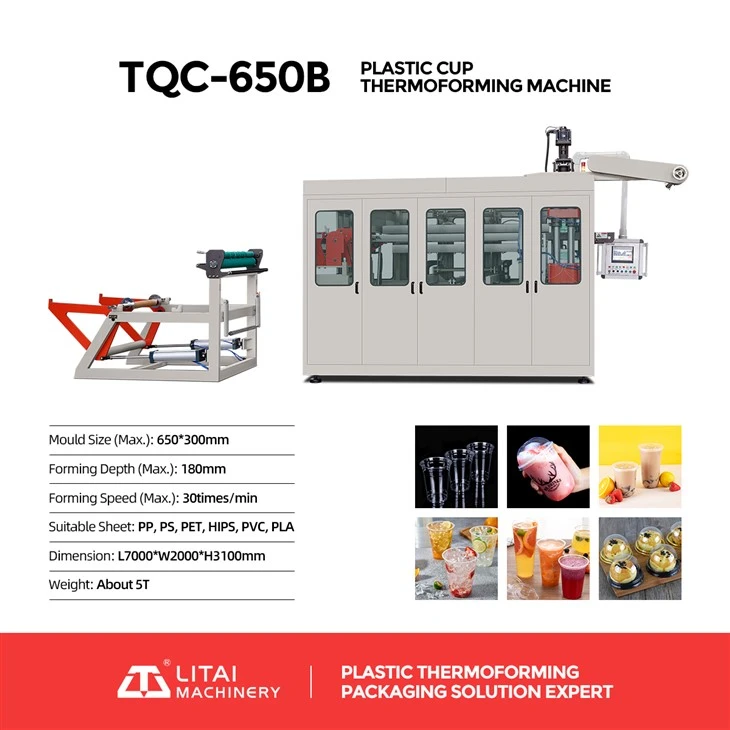

Full Automatic Plastic Cup Forming Machine

Full Automatic Plastic Cup Forming Machine

Machine Videos :1.https://youtu.be/csLgKUkCH9w 2.https://youtu.be/ezmdMH-tQJw 3.https://youtu.be/shZhSepQuq8 TQC Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high...

Product Details

Full Automatic Plastic Cup Forming Machine

Machine Videos:1.https://youtu.be/csLgKUkCH9w

                             2.https://youtu.be/ezmdMH-tQJw

                             3.https://youtu.be/shZhSepQuq8

TQC Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yogurt cups, trays, plates, covers, lids, containers, etc.


 Samples:

deli packageing 20RC101-550-250x250



 pp Containers 5.5oz.jpeg

TECHNICAL  PARAMETER

Model

TQC-650B

Max. Forming Area

650*320 mm

Max. Forming Depth

125mm

Sheet Thickness

0.3-1.8mm

Sheet Width

660mm

Forming Speed

30 times/min

Air Pressure

0.6-0.8mpa

Air Consumption

2.0m³/min

Water Consumption

0.5m³/h

Rated Power

98kw

 Power Supply

AC 380V,50Hz, Three-phase, Four-wire

Dimension

L7000*W2000*H3100mm

Weight

About 5 T

MACHINE MAIN PARTS

Touch ScreenPLC

Siemens, Germany

Servo Motor

Yaskawa, Japan

AC ContactorCircuit Breaker

Schneider,France

Proximity Switch

TURCK, Germany

Solenoid Directional Valve

Yuken, Taiwan



Solenoid Overflowing Valve

Counterbalance valve

Forming Valve

MAC, America

Solenoid Valve

SMC/Mindman, Japan/Taiwan

FAQ

1.Are you a manufacturer?

Yes, we have been in making plastic thermoforming machineover 16 years.

2.What about the payment term ?

Mostly 30%T/T in advanced, the rest need be paid by TT before shipping

3.Machine adjustment and installation

We can send technicians go to customers' country for machine adjustment and installation

4.Guarantee time and after-sale

One year guarantee time, after one year , we have professional after-sales department providing

best service if customer has any problems.
