Disposable Plastic Cup Forming Machine

Disposable Plastic Cup Forming Machine

Machine Videos :1.https://youtu.be/csLgKUkCH9w 2.https://youtu.be/ezmdMH-tQJw 3.https://youtu.be/shZhSepQuq8 TQC Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high...

Product Details

Disposable Plastic Cup Forming Machine

Machine Videos:1.https://youtu.be/csLgKUkCH9w

                             2.https://youtu.be/ezmdMH-tQJw

                             3.https://youtu.be/shZhSepQuq8

Application Area

Plastic thermoforming machine adopts servo motor for sheet feeding and plug stretching, PLC for program, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, cups, trays, plates, covers, lids, containers, etc.


 Samples:

paste-pic-dp_uuid_4895utimg (2)

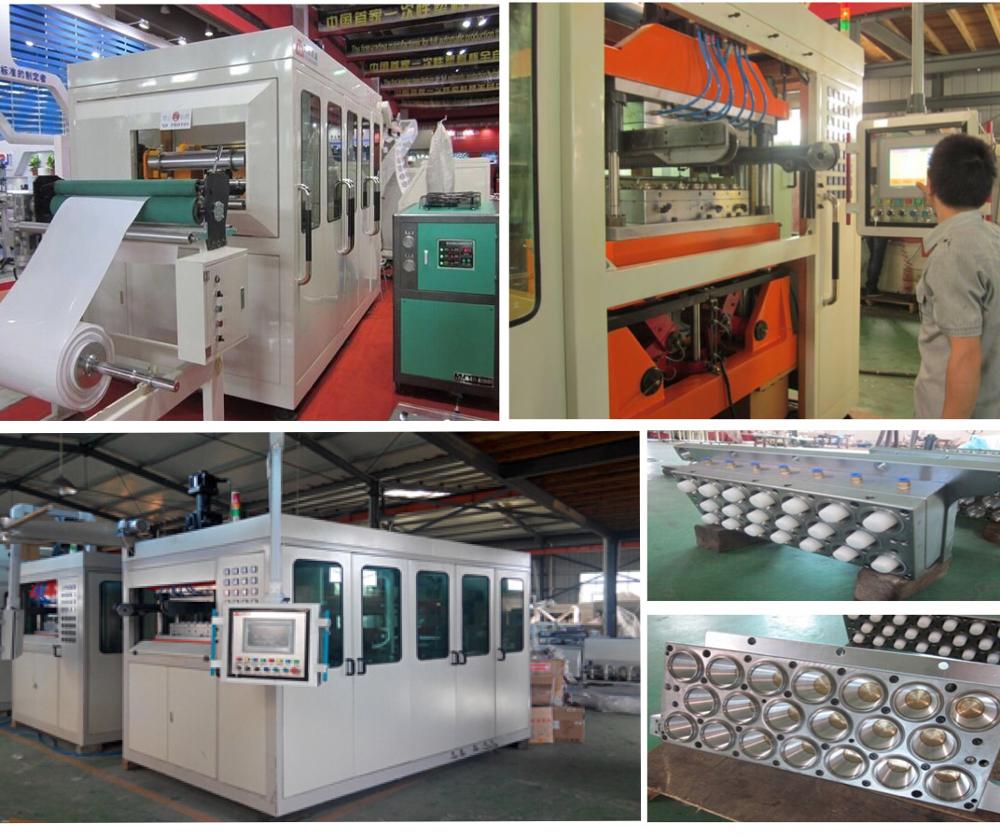

 Packing

paste-pic-dp_uuid_ungf5

Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable forming temperature, formed to a specific shape in a mold, and trimmed to create a usable product. The sheet, or "film" when referring to thinner gauges and certain material types, is heated in an oven to a high-enough temperature that permits it to be stretched into or onto a mold and cooled to a finished shape. Its simplified version is vacuum forming.

TECHNICAL  PARAMETER

Model

TQC-650B

Max. Forming Area

650*320 mm

Max. Forming Depth

125mm

Sheet Thickness

0.3-1.8mm

Sheet Width

660mm

Forming Speed

30 times/min

Air Pressure

0.6-0.8mpa

Air Consumption

2.0m³/min

Water Consumption

0.5m³/h

Rated Power

98kw

 Power Supply

AC 380V,50Hz, Three-phase, Four-wire

Dimension

L7000*W2000*H3100mm

Weight

About 5 T

MACHINE MAIN PARTS

Touch ScreenPLC

Siemens, Germany

Servo Motor

Yaskawa, Japan

AC ContactorCircuit Breaker

Schneider,France

Proximity Switch

TURCK, Germany

Solenoid Directional Valve

Yuken, Taiwan



Solenoid Overflowing Valve

Counterbalance valve

Forming Valve

MAC, America

Solenoid Valve

SMC/Mindman, Japan/Taiwan

Our Quality

We have got CE and ISO9001certification.With the mind to offer customers the best plastic thermoforming machine,we have got a good reputation over the world.We will supply you the best quality plastic packing machine of good price continuously as we did in the past 18 years.

Our Company

Ruian Litai Machinery Co.,LTD is a full service manufacturing company and willing to supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,printing machine,auxiliary machine and other machineries in mechanical industry.We produce many different types products for your selection.

Why choose us

  1. Over 18 years in plastic thermoforming machine design and manufacture.
  2. An experienced R&D department design suitable machine for you.Customized is available all the time.
  3. Exported to over 80 countries.
  4. 100% export,Value up to 60,000,000RMB,and almost 20% rising every year.

FAQ

  1. The capacity of production (per hour or per month)?
    It depends on your samples.Forming Area is 650mm*320mm
  2. Do you charge for sending engineers to our factory?
    For standard time,all free,for extra time,you need pay 120USD per day for engineers wage.
  3. Whats your warranty date?
    Thirteen months warranty time since shipping.After this,we have unprofessional after-sales team to serve you.
  4. Is it included modules?
    No,Modules not include.Different modules different price.
  5. Is the installation include?
    Yes
