Pet Sheet Extruder Machine
Product Description TJ - 950 PET Single Layer Sheet Extruder APPLICATION AREA T his m a c hine is suitable for producing PP/PS/PET sheet. It extrudes granule to sheet which is used for producing different kind of plastic cups, food containers, trays, dishes, bowls, trays, lids, etc. MAIN...

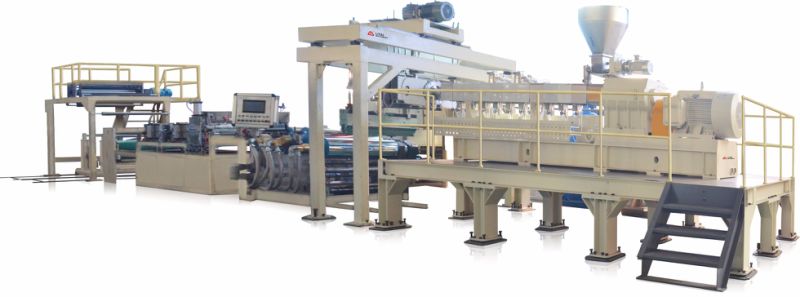

TJ - 950 PET Single Layer Sheet Extruder
This machine is suitable for producing PP/PS/PET sheet. It extrudes granule to sheet which is used for producing different kind of plastic cups, food containers, trays, dishes, bowls, trays, lids, etc.

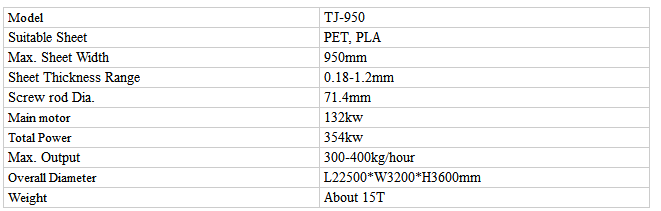

MAIN TECHNICAL PARAMETER
|Suitable Sheet||PET, PLA|
|Max. Sheet Width||950mm|
|Sheet Thickness Range||0.18-1.2mm|
|Screw rod Dia.||71.4mm|
Part 1. Extruding part
1. Screw material uses nit riding 38CrMoAlA
2. Five zones barrel heating, with cooling fan
3. ZLYJ series plastic rubber dedicated reducer
4.Motor Power 132KW
Part 2. Three rollers polishing part
1. Three roller diameter Ø320mm (2pcs), Ø500mm ( 1pcs )
2. The roller surface is quenching, hardness HRC60-62,
3.Three rolls are independently driven by servo motor
4. The thickness of the sheet can be adjusted according to your requirements within the suitable range.
5.Three rollers inside adopts vortex cooling design to achieve rapid refrigeration purposes.
6. Polishing step adopts oil cylinder.
Part 3. Mold temperature control cooling/heating
1. The temperature of three rollers can be precisely controlled.
2. It can have extra cooling device to make refrigeration better
Part 4. The silicone coating system
1.In sheet surface and the coating are silicone
2. Excellent rolling release effect
Part 5. Cutting (trimming) Width instructions
Adjustable Cutting width, by adjusting the hand wheel, adjust sheet width under Pneumatic solenoid valve
Part 6. Traction and waste material rewinding
3. Convenient waste material rewinding
Part 7. Finished sheet winding
1. Winding diameter up to 1000mm
2. Adopts 2 work station finished sheet winding
