Sheet Extruder Line




APPLICATION AREA

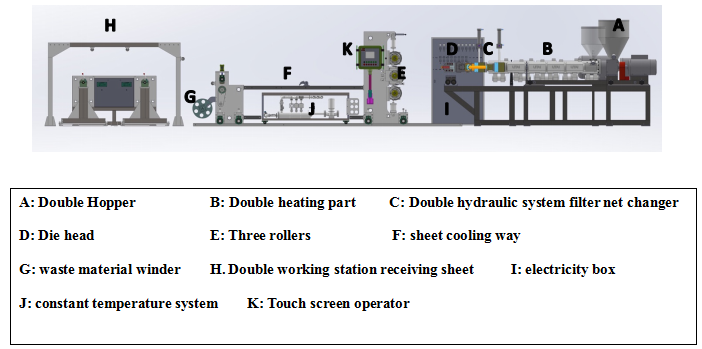

The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.

Technical Parameter

Model

TJS-670

Suitable Sheet

PP, PS

Max. Sheet Width

670mm

Sheet Thickness Range

0.3-2.0mm

Screw rod Dia(main machine)

95 mm

Screw rod Dia(auxiliary machine)

65mm

Screw L/D Ratio(main machine)

35:1

Screw L/D Ratio(auxiliary machine)

36:1

Main Motor Power

75kw

Auxiliary Motor Power

22kw

Max. Output

250kg/hr

Rated Power

238kw

Power Supply

AC 380V,50Hz, Three-phase , Four-wire

Dimension

L14000xW2800xH2500mm

Weight

About 8T
