Plastic Dish Producing Machine

1. Mould is fixed by four pillars. --more stable, precision, lower noise, high speed.2.Touch screen and PLC use Siemens, Germany technology .3.Automatical Mechanism movement lubricant automatically at certain times.4.Auomatic sheet feeder with square steel structure, stable,energy-saving and high efficiency.

Product Details

APPLICATION AREA



Plastic thermoforming machine adopts servo motor for sheet feeding and stretching, PLC for programme, touch screen for operation, stable, low noise, high efficiency. suitable for producing plastic dish, cup, box etc.

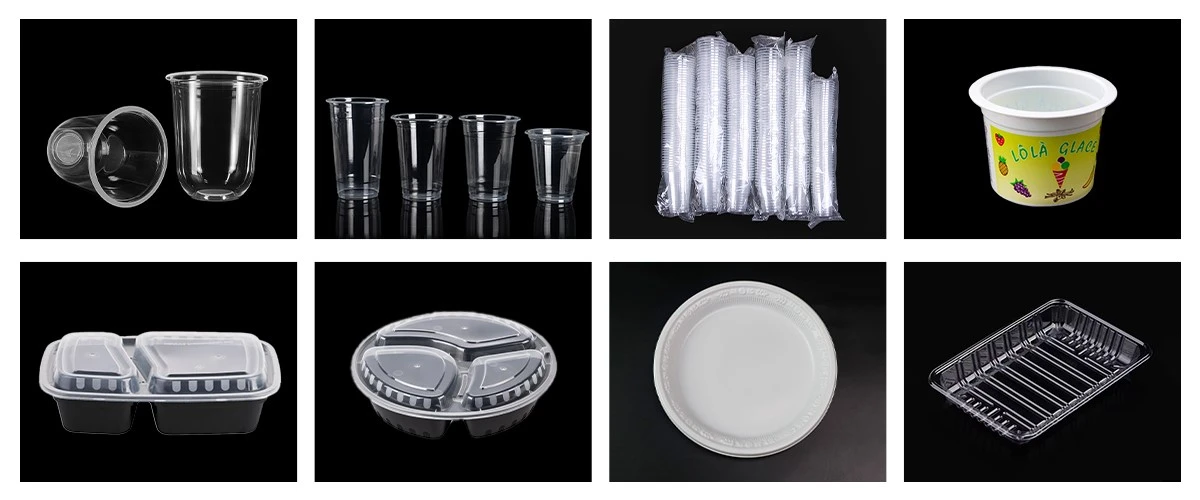

SAMPLES




TECHNICAL  PARAMETER

Model

TQC-650B

Max. Forming Area

650*320 mm

Max. Forming Depth

125mm

Sheet Thickness

0.3-1.8mm

Sheet Width

660mm

Forming Speed

30 times/min

Air Pressure

0.6-0.8mpa

Air Consumption

2.0m³/min

Water Consumption

0.5m³/h

Rated Power

98kw

 Power Supply

AC 380V,50Hz, Three-phase, Four-wire

Dimension

L7000*W2000*H3100mm

Weight

About 5 T

MACHINE MAIN PARTS

Touch ScreenPLC

Siemens, Germany

Servo Motor

Yaskawa, Japan

AC ContactorCircuit Breaker

Schneider,France

Proximity Switch

TURCK, Germany

Solenoid Directional Valve

Yuken, Taiwan



Solenoid Overflowing Valve

Counterbalance valve

Forming Valve

MAC, America

Solenoid Valve

SMC/Mindman, Japan/Taiwan

FAQ

Questions:

Answers:

Are you a manufacturer?

Yes, we have been in making plastic thermoforming machineover 16 years.

What about the payment term ?

Mostly 30%T/T in advanced, the rest need be paid by TT before shipping.

What is your machine capacity?

--Ø70mm, 90mm depth cups, in standarded machine, 500pcs/min, bigger type machine 1000pcs/min.

what's your advantages?

--16 years experience in making plastic products machines.
--More than 72 countries and regions cooperate with us.
--CE certificate, ISO 9001

--Our team will reply you in 24 hours.

--We have professtional after sales department, can arrange engineer to customer factory for machine installation and training,and provide long term supply technology support and spare parts.


Process:


Exhibition


  Germany Exhibition          China Exhibition
