Ps Plastic Cup Machine

Ps Plastic Cup Machine

TQC Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yogurt cups, trays, plates, covers, lids, containers, etc.

Chat Now

Product Details

Ps Plastic Cup Machine

Machine Videos:1.https://youtu.be/csLgKUkCH9w

                             2.https://youtu.be/ezmdMH-tQJw

                             3.https://youtu.be/shZhSepQuq8

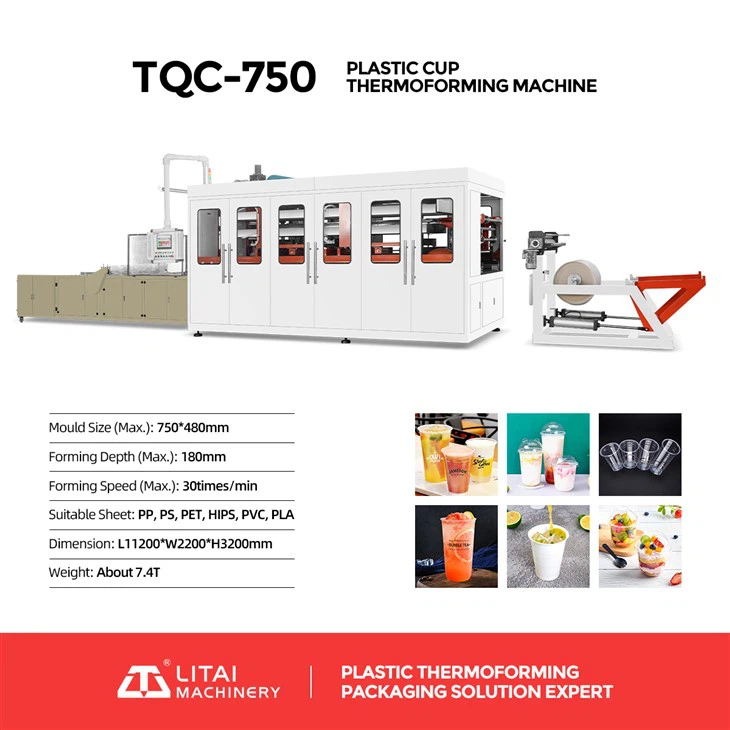

TQC 750 主图.jpg

PS Plastic Cup Machine-----Technical Parameters

TECHNICAL  PARAMETER

Model

TQC-750

Max. Forming Area

750*480mm

Max. Forming Depth

125mm

Sheet Thickness

0.3-1.8mm

Sheet Width

760mm

Forming Speed

26 times/min

Air Pressure

0.6-0.8mpa

Air Consumption

3.0m³/min

Water Consumption

0.7m³/h

Rated Power

140kw

 Power Supply

AC 380V,50Hz, Three-phase, Four-wire

Dimension

L8500*W2200*H3200mm

Weight

About 6.5T

PS Plastic Cup Machine---Application

This is air pressure thermoforming machine which adopts hydraulic four-column structure, with characters of smooth operation, low noise and strong mould clamping force. High degree of automation with in-mold-cutting function, greatly improve machine capacity and save labor cost.

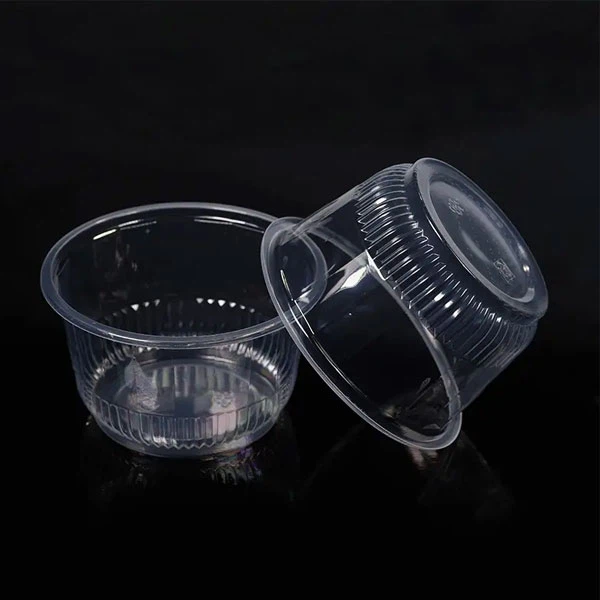

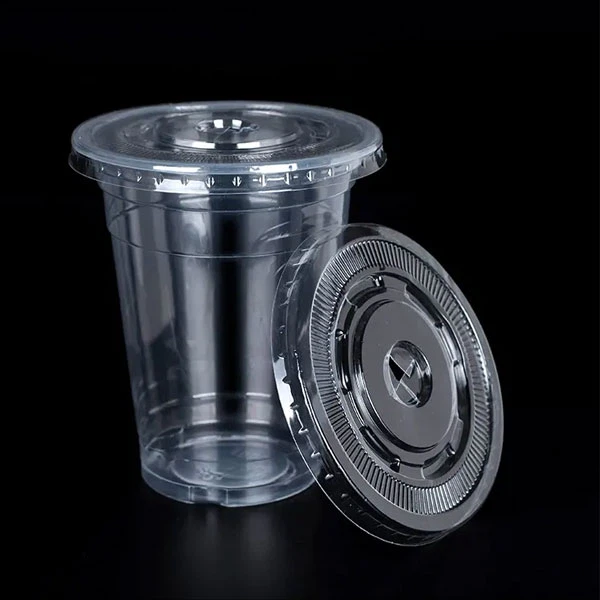

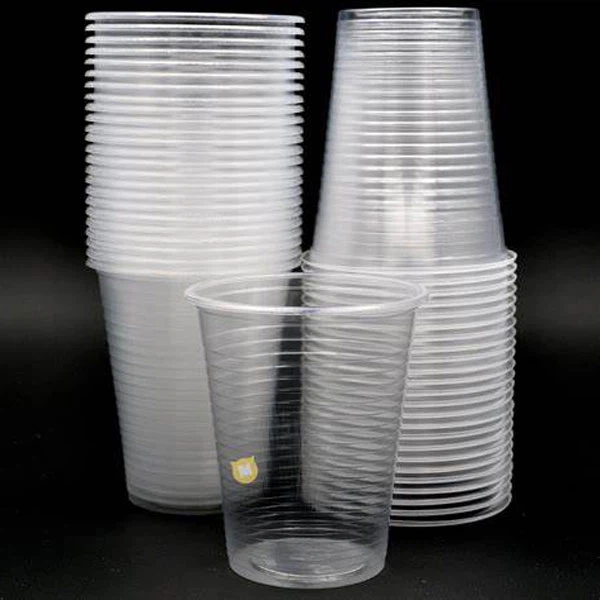

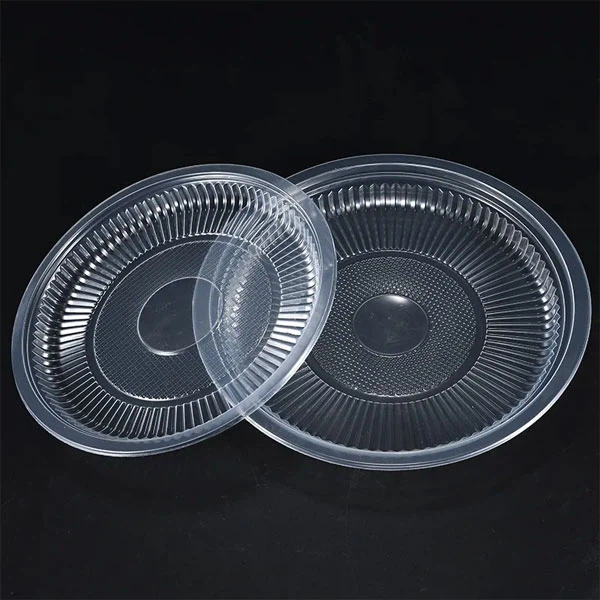

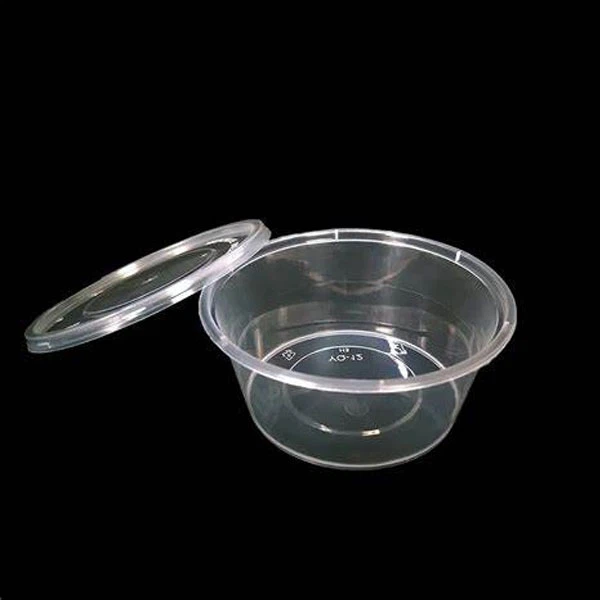

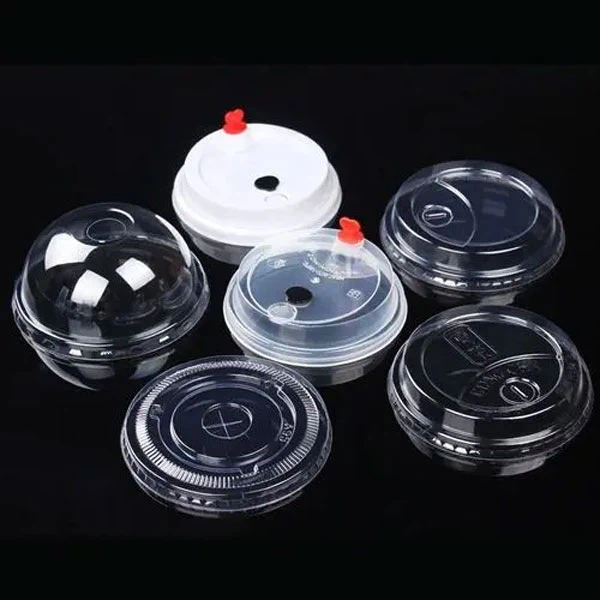

Ps Plastic Cup Machine--- Samples:

pp drinking cups5.jpgSolo® Party Plastic Cold Cups.jpg


  Packing

paste-pic-dp_uuid_ungf5
