Plastic Container Thermoforming Machine

TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic containers, boxes, lids, etc.

Product Details

Application:

TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely

driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic

trays, containers, boxes, lids, etc.

four stations plastic thermoforming machine for plastic container making

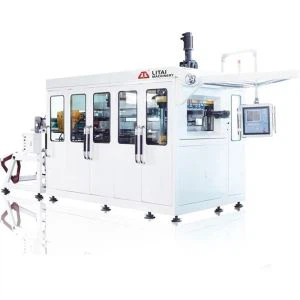

Machine detail

four stations plastic thermoforming machine for plastic container making



Main Technical Parameter:

Model

 TTF-400A

Forming Area

 400mm x 300 mm

Forming Depth (Max.)

 60mm

Sheet thickness

 0.3-1.8mm

Forming Speed (Max.)

 35 times/min

Air pressure

 0.6-0.8mpa

Air consumption

 2 m³/min

Water consumption

 0.7 m³/h

Sheet width (Max.)

 430mm

Suitable Sheet

 PP, PS, HIPS, PET, PVC,etc.

Power supply

 AC 380V, 50Hz, Three-phase, Four-wire

Rated power

 58kw

Procedure

 Forming-cutting-stacking

Dimension

 L5200×W2000×H2400mm

Weight

 5.2T



FAQ

Questions

Answer

The core strengths of the machine

Patent product,new generation driven way,special energy-saving.

Whats the output

TTF-400/TTF-520/TTF-780 series, according to your quantity requirement ,then choice the suitable one

Machine adjustment and installation

We can send technicians go to customers' country for machine adjustment and installation

Guarantee time and after-sale

One year guarantee time, after one year , we have professional after-sales department providing best service if any problems.



Specification:

1.Working stations adopt four-pillar structure. --more stable and more precise.

2.Toucscreen, PLC and servo motor adopt Delta brand from Taiwan.

3. Sheet feeding driven by servo motor.

4.Heaters adopts “Elstein” from Germanyvacuum insulation cotton--save more energy.







Samples:

four stations plastic thermoforming machine for plastic container making

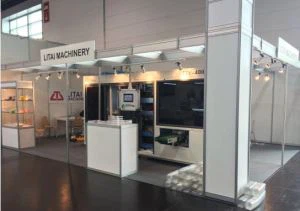

 Our Company

Rui'an Litai Machinery CO.,LTD is founded in 2001. For more than 16 years, we focus on researching,

developing, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS

 plastic thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more

than 72 countries and regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia,

Kuwait, Iran, Brazil, Chile, Bolivia, Saudi Arabia, Peru, etc.



Certificate

four stations plastic thermoforming machine for plastic container making
