Square Plastic Container Making Machine

TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic containers, boxes, lids, etc.

Product Details

Application:

TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.



Main Technical Parameter:

                MAIN TECHNICAL PARAMETER

Model

TTF-520A

Forming Area

520mm x 400 mm

Forming Depth (Max.)

100mm

Sheet thickness

0.3-1.8mm

Forming Speed (Max.)

30 times/min

Air pressure

0.6-0.8mpa

Air consumption

3 m³/min

Water consumption

0.7 m³/h

Sheet width (Max.)

570mm

Suitable Sheet

PP, PS, HIPS, PET, PVC,etc.

Power supply

AC 380V, 50Hz, Three-phase, Four-wire

Rated power

100kw

Procedure

Forming-cutting-stacking

Dimension

L9700×W4600×H2700mm

Weight

About 7.0T





Specification:

1.Working stations adopt four-pillar structure. --more stable and more precise.

2.Toucscreen, PLC and servo motor adopt Delta brand from Taiwan.

3. Sheet feeding driven by servo motor.

4.Heaters adopts “Elstein” from Germanyvacuum insulation cotton--save more energy.

5. Working stations are driven completely by Servo motor.

6. Guiding parts adopt crank-link mechanism to improve work efficiency.

7. Stacking part adopts electric cylinder, driven by servo motor.

8. Using glycerolipid to lubricate the parts, adding one time can last for more than one month, avoid the leaking of traditional oil.

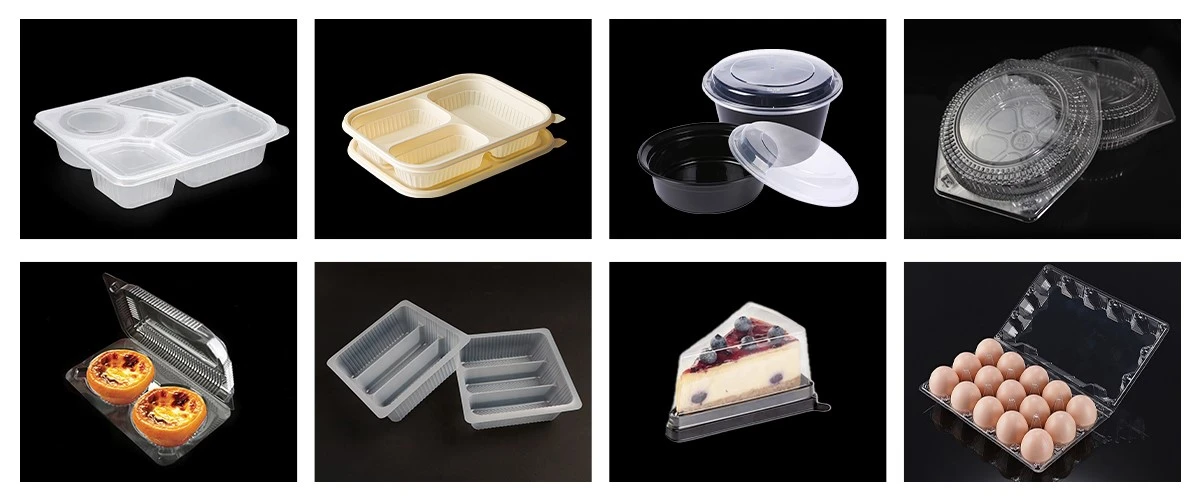

Sample:

square /round shape plastic litchi box /container forming making machinesquare /round shape plastic litchi box /container forming making machine



Chinaplas Exhibition:

square /round shape plastic litchi box /container forming making machinesquare /round shape plastic litchi box /container forming making machinesquare /round shape plastic litchi box /container forming making machine

square /round shape plastic litchi box /container forming making machine







2015Chinaplas

square /round shape plastic litchi box /container forming making machine





2016Chinaplas

square /round shape plastic litchi box /container forming making machine





2016 K show

square /round shape plastic litchi box /container forming making machine





2017Chinaplas

square /round shape plastic litchi box /container forming making machine

Cetification

square /round shape plastic litchi box /container forming making machine
