Biscuit Box Machine
1. Working stations adopt four-pillar structure. --more stable and more precise.2. Touch screen, PLC and servo motor adopt Delta brand from Taiwan.3.Material holder combine with the machine.It can save workshop space,easy to control..Forming station adopts savro motor system,more stable and efficient.4.Forming station adopts savro motor system,more stable and efficient.5.Heaters adopts “Elstein” from Germany, vacuum insulation cotton--save more energy.
Product Details
Application:

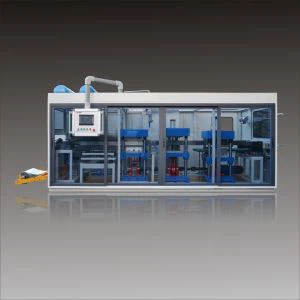

TTF-520 thermoforming machine is forming, punching,cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic fast food box(container), lunch box, cake box, electronic tray, etc.
Sample:
Model | TTF-520A |
Forming Area | 520mm x 400 mm |
Forming Depth (Max.) | 100mm |
Sheet thickness | 0.3-1.8mm |
Forming Speed (Max.) | 30times/min |
Air pressure | 0.6-0.8mpa |
Air consumption | 3 m³/min |
Water consumption | 0.7 m³/h |
Sheet width (Max.) | 570mm |
Suitable Sheet | PP, PS, HIPS, PET, PVC,etc. |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Rated power | 110kw |
Procedure | Forming-punching-cutting-stacking |
Dimension | L11000*W4600*H2700mm |
Weight | About 8.0T |
Company Brief Introduction
Rui'an Litai Machinery CO.,LTD is founded in 2001. For more than 16 years, we focus on
researching, developing, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic thermoforming machine, mutil-layer PP/PS/PET sheet extruder,mould, etc. There are more than 72 countries and regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil, Chile, Bolivia, Saudi Arabia, Peru, etc.
